RFID HF Readers

ACR 122 U Download DataSheet
  • CCID-compliant
  • PC/SC-compliant
  • Read/write speed up to 424 kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • Supports ISO 14443 Type A and B, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
  • Built-in anti-collision feature (only 1 tag is accessed at any time)
  • User-controllable bi-color LED
  • User-controllable buzzer
OMNIKEY 5321 USB) Download DataSheet
  • Philips: MIFARE®, DESFire®, MIFARE® ProX®, SMART MX, and i.code
  • HID: iCLASS®
  • Texas Instruments: TagIT®
  • ST Micro: x-ident, SR 176, SR 1X 4K
  • Infineon: My-d (in secure mode UID only)
  • Atmel: AT088RF020
  • KSW MicroTech: KSW TempSens
  • JCOP in RSA mode

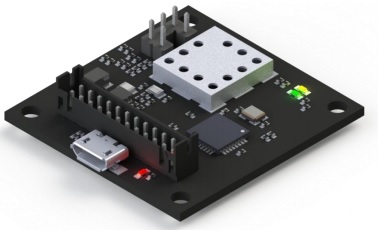

SkyeModule Gemini Download DataSheet
  • 13.56MHz HF RFID
  • Reads and writes to transponders based on ISO14443A/B
  • Reads and writes to other NFC devices based on ISO18092
  • Emulates NFC tags based on ISO18092
  • 3DES authentication for MIFARE Ultralight C tags
  • AES authentication for MIFARE Plus tags
  • Crypto1 authentication for MIFARE Classic tags
  • Wide and efficient power supply with input from 1.8 5.5V
  • Sleep mode current down to 10uA
  • Easy migration to and from the M2/M4
  • Supported host interfaces include USB, TTL level RS232, SPI, I2C
  • Modularly certified
ACR 128 Download DataSheet
  • Dimensions - 120.5 mm (L) x 72 mm (W) x 20.4 mm (H)
  • Weight - 150g
  • Interface - USB 2.0 Full Speed
  • Operating Distance - Up to 50 mm (depends on the tag type)
  • Supply Voltage - Regulated 5 V DC
  • Supply Current - 200mA (max); 100mA (normal)
  • Operating Temperature : 0-50°C
  • Humidity : 10 - 80 %
  • Operating Frequency : 13.56MHz
  • Smart Card Interface Support
      ISO14443 T=CL for ISO 14443 A & B Parts 1-4 compliant cards and T=CL Emulation for MIFARE® series, NFC reader mode
      Extended APDU support
      Memory card support is made upon request
  • Compliance / Certifications - Germany nPA certified, PC/SC, CCID, CE, FCC, RoHS Compliant, Microsoft WHQL: 2000, XP, Vista, 7
  • Operating System Support
      Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7
      Win 2003 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64
      Mac
      Linux
      Android™ 3.1 and above
