| IDT 85 |
Download DataSheet |
 |
- Physical Characteristics : Dimensions 285 (L)*205 (W)*77 (H) mm, Weight 2KG
- Environment
Operating Temp -20°C to 55°C (-4F to 131°F)
Storage Temp -40°C to 80°C (-40°F to 176°F)
- Antenna Connection : SMA (Female/ Inbuilt Antenna)
- Power : External 110- 240 VAC auto- ranging RFID
- Frequency Ranges : 865- 867 MHZ band (We can do as per your requirements)
- RF power control : 20- 30 dBm
- Tag Air control : EPC Class 1 Gen 2 or ISO 18000- 6B
- Communication interfaces : RS232/ RS485; Wiegand26/34
- Reader Range >4m tag and antenna dependent
|
| IDT 88 |
Download DataSheet |
 |
- Protocol : ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C)
- Protection Grade : IP 65
- Work Frequency
Standard ISM 865-868MHz, 902~928MHz (frequency can be customized)
- Power : External 110- 240 VAC auto- ranging RFID
- Frequency Ranges : 865- 867 MHZ band (We can do as per your requirements)
- Frequency Hopping : FHSS
- Power Output : 10- 30 dBm (adjustable)
- Antenna : Built- in 12 dBi linearized polarized antenna
- Interface : RS232, RS485, wiegand 26/ 34 (TCP/IP, WIFI can be customized)
- Operating Mode : Answer, Active, Trigger
- Read Range : 0- 15m
- Write Range : 0- 6m
- Reading Clue : Buzzer
- Input Power Supply : 100- 240V, DC +9V (Power Adapter)
- Power Consumption : 1W
- Dimension : 405* 405* 35mm
- N.W. : 2600g
- G.W. : 4000g
- Operation Temp : -25°C to +60°C
- Additional services : Provide Demonstration software and SDK for further development
|
| IDT 4 Port Reader |
Download DataSheet |
 |
- Protocol : ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C)
- Protection Grade : IP 65
- Work Frequency
Standard ISM 865-868MHz, 902~928MHz (frequency can be customized)
- Protocol : ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C)
- Reading Rate : 80- 100 tags/ second
- Mounting : Wall Mountable
- Power Output : 10- 30 dBm (adjustable)
- Protection Grade : IP 40
- Work Frequency : Standard ISM 865-868MHz, 902~928MHz (frequency can be customized)IP 40
- Frequency Hopping : FHSS
- Power Output : 0- 30 dBm (adjustable)
- Antenna : One- Four Antennae, TNC Connector
- Interface : RS232, RS485, wiegand 26/ 34 (TCP/IP, WIFI can be customized)
- Operating Mode : Answer, Active, Trigger
- Read Range : Upto 8 meters with 8 dBi Antennae and upto 15 meters with a 12 dBi Antennae
- Write Range : 0- 5 meters
- Reading Clue : Buzzer and Led
- Input Power Supply : External 100- 240 V AC Adaptor
- Dimension : 225* 170* 40mm
- N.W. : 1230 g / G.W. : 2100 g
- Additional services : Provide Demonstration software and SDK for further development
|
| IDT 107 |
Download DataSheet |
 |
- Protocol : ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C)
- Protection Grade : IP 65
- Work Frequency : Standard ISM 865-868MHz, 902~928MHz (frequency can be customized)
- Frequency Hopping : FHSS
- Power Output : 0- 30 dBm (adjustable)
- Antenna : Built- in 12 dBi circular polarized antenna
- Interface : RS232, RS485, wiegand 26/ 34 (TCP/IP, WIFI can be customized)
- Operating Mode : Answer, Active, Trigger
- Read Range : 0- 300mm
- Write Range : 0- 100mm
- Reading Clue : Buzzer and Led
- Antenna : One- Four Antennae, TNC Connector
- Interface : RS232, RS485, wiegand 26/ 34 (TCP/IP, WIFI can be customized)
- Operating Mode : Answer, Active, Trigger
- Read Range : Upto 8 meters with 8 dBi Antennae and upto 15 meters with a 12 dBi Antennae
|

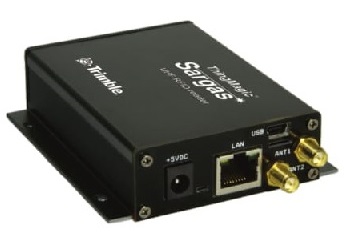

| SARGAS 2 Port UHF RFID Reader |
Download DataSheet |
 |
- Reads up to 750 tag per second
- World - wide frequency coverage
- Networking, GPIO, USB, micro SD ports
- Unique on-board HDMI interface
- Mercury API, Universal Reader Assistant software support
- Independent read and write RF controls.
|

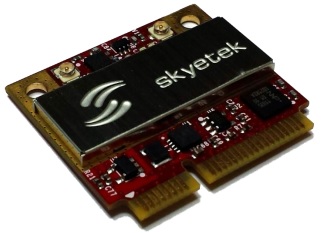

| Skye Module Nova UHF Reader |
Download DataSheet |
 |
- 860-960 Mhz UHF RFID
- Reads and writes to transponders based on EPC class
- Wide and efficient power supply with input from 2.0-5.5V
- 2 Antenna ports with SkyeTek Adaptive Antenna Tuning
- 500mW output power, upto 10m read range
- RSSI and DRM(Coming Soon)
- Sleep mode current down to 10uA
- Easy migration from M7, M9 and M10
- Supported host interfaces include USB, TTL level RS232, SPI, 12C
- Modulary Certified(Coming Soon)
|
| Astra RFID reader (UHF) |
Download DataSheet |
 |
- Integrated UHF circular-polarized antenna with 6 dBi gain and 650 bandwidth
- Read-range of over 9 metres for Gen 2 RFID labels & tags
- Read-rate of over 190 tags per second
- Small form factor (10.2"H x 10.2"W x 3"D)
- Power over Ethernet (PoE) & Wifi (802.11) models available
|

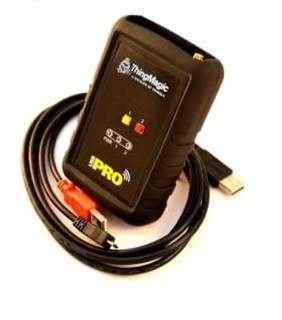

| USB Pro RFID Reader (UHF) |
Download DataSheet |
 |
- Reader : USB 6EP
- Development Kit : USB - 6EP - DEVKIT
- Dimensions : 97mm (L) x 61mm (W) x 25 mm (H)
- RFID Protocol Support: EPC Gen2v2, ISO 18000-6B, IPx, AEI ATA avaliable through addition license
- Tag Read Rate : 50 tags/second
|
| USB Plus + RFID Reader (UHF) |
Download DataSheet |
 |
- Powered by USB connection to notebook or desktop PC
- Internal ceramic antenna with an average gain of -2.6 dBi
- Support for full 860 to 960 MHz UHF RFID frequency range
- Tag Read Rate up to 190 tags/second
- Tag Read Distance Up to 12 inches (31 cm)
|
| RFID Indegrated Module |
